8849 / Unihertz Tank Pad Ultra

TANK Pad Ultra

Size, Design & Projector Comparison

Product Configuration 8849 / Unihertz Tank Pad Ultra 5G Specifications

Certification Standard
– IP68, IP69K Waterproof and Dustproof

Waterproof depth Ingress Protection
– Within 1.8 meters (immersion time maximum 30 minutes)
– Depth of 1.8m underwater for up to 30 minutes.
_________________________________
Basic Information

Model
– 8849 Tank Pad Ultra 5G
– Unihertz Tank Pad Ultra 5G

System
– Pre-installed with Android 15
– Supports OTA wireless firmware upgrades (Built-in OTA update)

Color
– Black

Processor
– CPU: MediaTek Dimensity 8200 (MT6896)
– Frequency: 8 Cores, up to 3.1GHz
– GPU: Arm Mali-G610 MC6
– Manufacturing Technology: 4nm

Memory + Capacity: RAM & ROM
– 16GB LPDDR4 RAM + 512GB UFS ROM
– Virtual RAM: Expandable up to 16GB
– SD Card: Supports up to 2TB Maximum

Battery and Charging
– Battery: 23400mAh
– Supports 66W Fast Charging
– Supports 10W Reverse Charging
_________________________________
Screen Display
– Size: 10.95 inches
– Panel Type: IPS LCD
– Resolution: 1200 x 1920
_________________________________
Camera
Rear Camera
– 50MP Main Lens
– Sony IMX766, 1/1.56″, AF
– 64MP Night Vision Lens
– OmniVision OV64B, AF
– Equipped with 4 infrared LEDs
– Video Recording: Supports up to 4K

Front Camera
– 32MP Selfie Camera
– Sony IMX616, FF

Built-in Underwater Photography mode
Take photos and video recording
– Start/end operation
– Quickly switch shooting modes
_________________________________
Connectivity
– Mobile Cellular: 5G / 4G / 3G / 2G
– Navigation: GPS, GLONASS, Galileo, Beidou (supports dual-frequency L1+L5)
– Wireless Network (WLAN): WiFi 6 (802.11 ax/ac/a/b/g/n)
– Bluetooth: 5.3
– NFC: Support
– FM Radio: Support
– OTG: Support
– Infrared Remote Control: Support

Buttons & Ports
– Card Slot: Dual Nano-SIM + TF Card Slot
– Charging port: USB Type-C (USB 2.0)
– Earphone jack: 3.5mm
– Dual Customized Keys
_________________________________
Dimensions
– Size: 268.3 x 170.3 x 23.6 mm
– Weight: 1345g
_________________________________
Projector
DLP projection technology Projector Technology
– Lumens: 260 lumens
– Resolution: 1920 x 1080 (1080P)
– Focusing Type: Autofocus
– Projection Distance: 0.5 meters to 4 meters
– Recommended projection distance: 1.5–2 meters

Laser Rangefinder (range measurement function)
– Measuring Range: 4 meters (4m)
– Functions: Distance measurement, area measurement, volume measurement

Speaker
– Dual Speakers
– Smart PA support (Awinic)
Speaker Model: 1134
– Sound Cavity: 3.5cc
Impedance: 4Ω
– Power: 2W
Loudness: 102dB

Camping Light & Warning Light
High-brightness Camping Light
– Red & Blue Warning Lights
_________________________________
(Including stand and protective case) Package Contents – Bundle
1 x 8849 Tank Pad Ultra 5G Rugged Tablet
1 x Fast Charger (66W)
1 x USB power cable
1 x Protective Case
1 x Screen Protector
1 x Adjustable Alloy Damping Stand
1 screw
1 x User Manual

(Cleanroom) Package Contents – Standard
1 x 8849 Tank Pad Ultra 5G Rugged Tablet
1 x Fast Charger (66W)
1 x USB power cable
1 x Screen Protector
1 x User Manual
_________________________________
Warranty
Parallel Import Products
7-Day Guarantee
– One-Year Warranty

Tank Pad Ultra

Best Flagship Rugged Tablet

Rugged 5G Tablet with Stunning 1080P Projector for Outdoor, Home & Work

The 8849 Tank Pad Ultra combines
premium Dimensity 8200 performance with 5G at 4.67 Gbps and Wi‑Fi 6 for seamless fieldwork. Its 260-lumen 1080P projector delivers bright, daylight-visible big-screen presentations, while a SONY 50MP main camera, 32MP front camera, and 64MP night vision camera ensure professional-quality imaging anytime, even in complete darkness. A 4m laser rangefinder enables fast on-site distance measurements, and an 11% larger battery with dual-frequency L1+L5 GPS supports long workdays and precise positioning. Rugged, versatile, and powerful, it’s designed for fieldwork, industrial use, and outdoor adventures, yet fully capable of office productivity and entertainment.

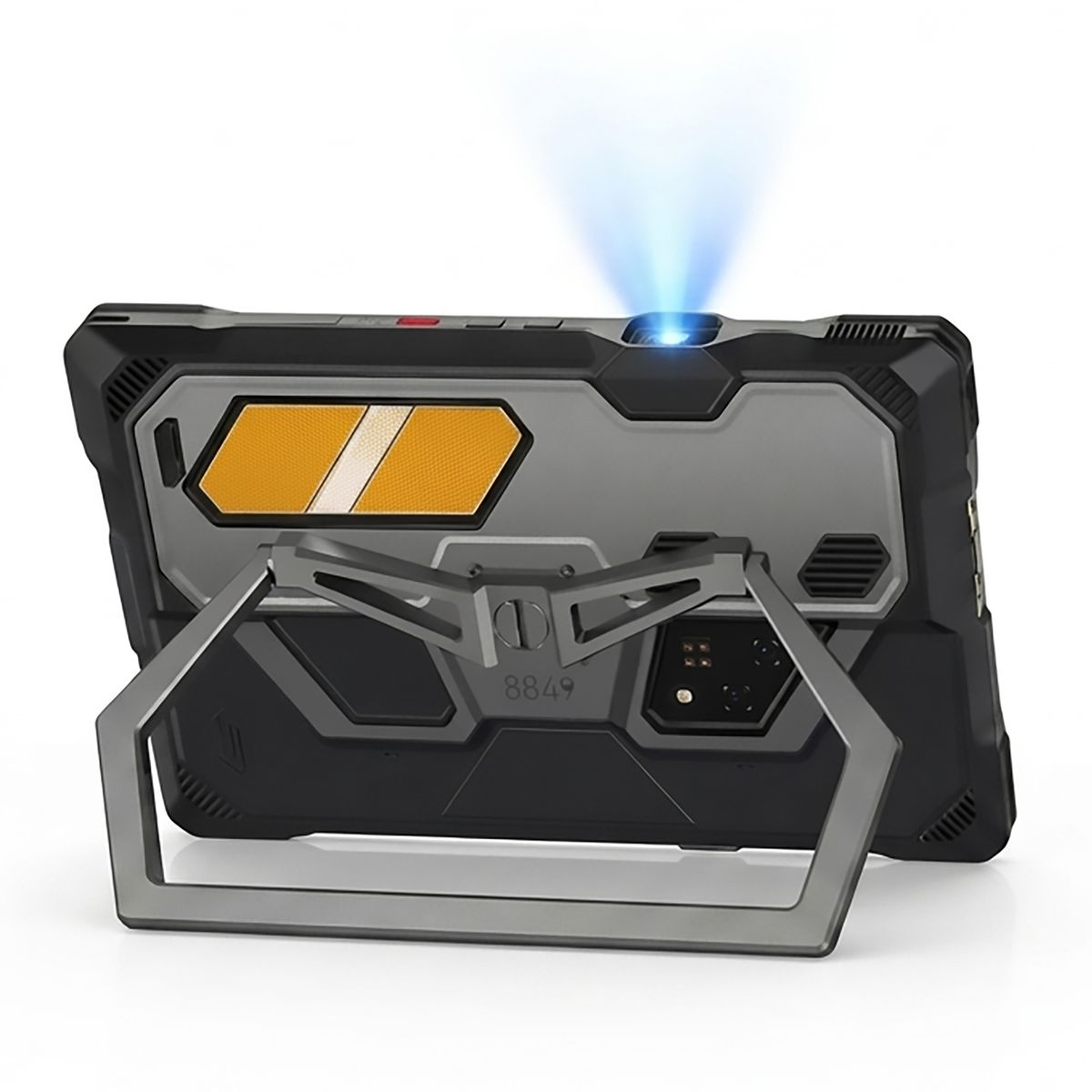

The Brightest 1080P Projector Tablet Ever!

8849 Tank Pad Ultra features a built-in 260-lumen DLP projector—2.6× brighter than the previous 100-lumen Tank Pad—with upgraded 1920×1080 resolution. Auto-focus ensures sharp images from 0.5 to 4 meters, delivering big-screen viewing even in daylight. Perfect for field presentations, on-site training, and collaborative work without external screens.

SONY 50MP + 64MP Night Vision

The 8849 Tank Pad Ultra rugged tablet features a Sony IMX766 50MP main sensor with a large 1/1.56″ format and all-pixel autofocus, delivering sharp, detailed shots even in challenging lighting. It is paired with an OmniVision OV64B 64MP secondary sensor that offers ultra-high resolution and on-chip re-mosaic technology for clear, rich images across various scenes. For night vision, four infrared assist lights and a dual-tone LED flash (up to 1.5A) provides strong visibility even in complete darkness, enabling accurate documentation, inspections, and visual monitoring in low-light or nighttime conditions.

32MP Front Camera — Clear Calls and Crisp Selfies

Tank Pad Ultra also features a Sony IMX616 32MP front camera, delivering sharp video calls, clear document captures, and bright selfies even in challenging lighting—perfect for remote work, online meetings, and outdoor use.

4M Laser Rangefinder

Built into the Tank Pad Ultra Rugged 5G Tablet, the 4m mini laser rangefinder provides fast and accurate distance measurements—perfect when a tape measure isn’t at hand. Ideal for construction sites, field engineers, and outdoor professionals.

Dimensity 8200 5G Chip

Tank Pad Ultra is powered by the 4nm Dimensity 8200 octa-core chipset, featuring one Cortex-A78 core at 3.1GHz, three Cortex-A78 cores at 3.0GHz, and four Cortex-A55 cores at 2.0GHz, paired with a Mali-G610 MC6 GPU for smooth multitasking and graphics. The integrated 5G modem delivers peak downlink speeds up to 4.67Gbps—double that of Tank Pad—and supports Wi-Fi 6 for faster, more reliable connectivity in congested environments. Advanced power management ensures exceptional battery life even under heavy workloads, making Tank Pad Ultra ready for the most demanding outdoor and industrial tasks.

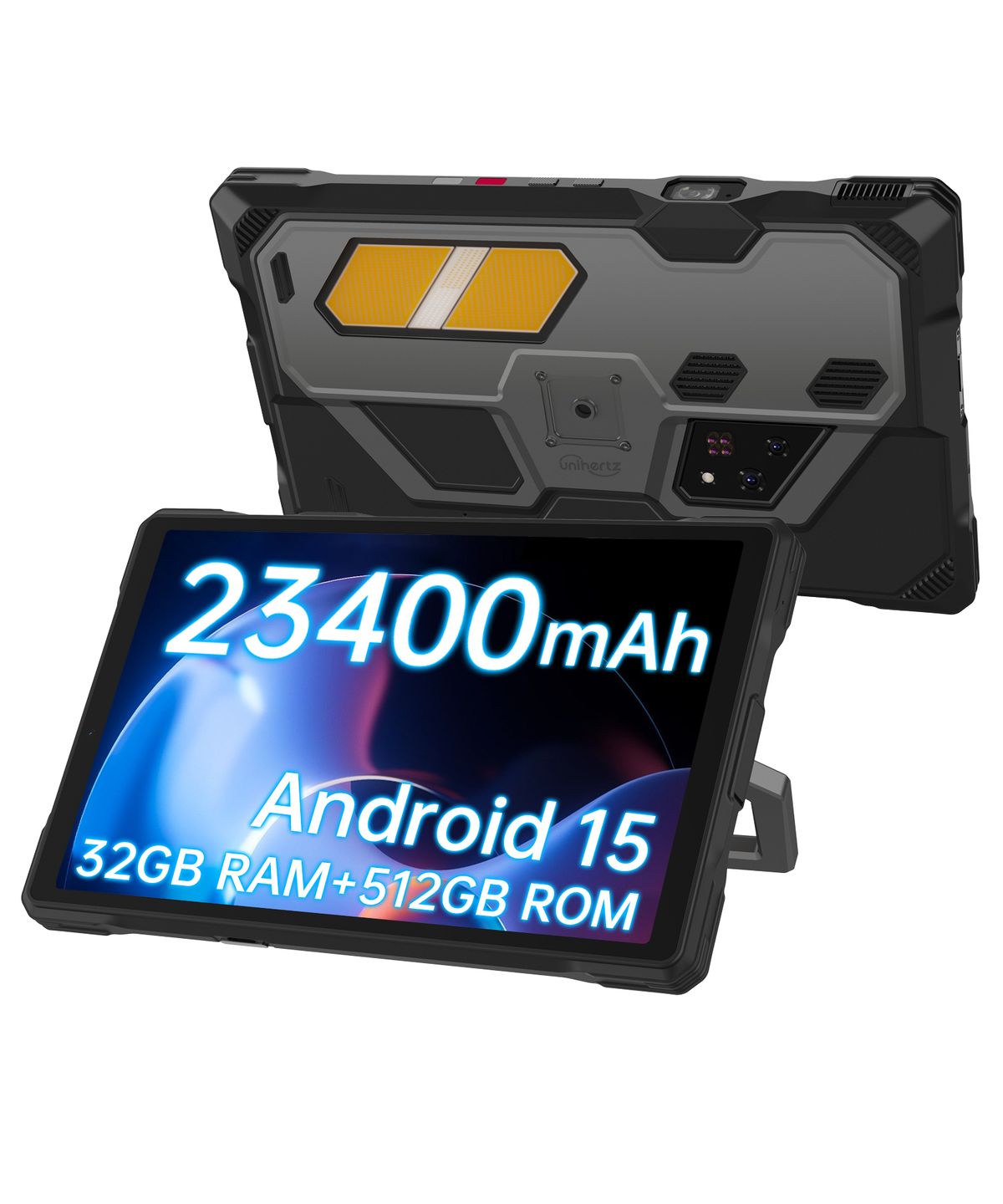

23400mAh Battery + 66W Fast Charge

A massive 23400mAh battery gives Tank Pad Ultra multi-day endurance for fieldwork, remote travel, and long shifts. 66W fast charging delivers a full charge in just 2 hours, while Type-C reverse charging lets you power earphones or other devices on the go. Perfect for field engineers, construction crews, overland travelers, and search & rescue teams — anyone who needs a rugged tablet with reliable power.

16GB RAM + 16GB Virtual RAM + 512GB Storage

The 8849 Tank Pad Ultra delivers a total of 32GB memory, enabling smooth multitasking across demanding workloads—open large blueprints, run mapping software, manage project tools, and join video calls all at once without lag. Its 512GB storage holds thousands of high-resolution photos, hours of 4K video, years of project files, and offline maps, with support for expansion up to 2TB via TF card for even larger data needs. Ideal for field engineers, project managers, content creators, and heavy multitaskers who require both performance and storage.

10.95″ FHD+ Display (1200*1920)

The TANK Pad Ultra’s 10.95″ FHD display hits the “golden ratio” for rugged Android tablets—offering a screen large enough for detailed schematics and multi-tasking while remaining compact enough for easy use on-site. Optimized for outdoor visibility, this 1200*1920 high-brightness panel is the ultimate tool for field engineers, urban planners, and remote project managers who demand precision in any environment.

Dual-Frequency L1+L5 GNSS

Tank Pad Ultra supports GPS, GLONASS, Galileo, and Beidou with dual-frequency L1+L5, ensuring accurate positioning even in mountains, forests, or cities. Perfect for field surveys, mapping, and outdoor projects where precision matters.

Built for Convenience & Flexibility

Tank Pad Ultra rugged tablet is equipped with NFC for quick payments and access control, dual SIM support to stay connected across networks, a side fingerprint sensor for fast and secure unlocking, and reverse charging to power other devices on the go—making it a practical tool for both work and everyday use, wherever you are.

Bright Camping & Work Light

Built-in high-brightness camping light and red & blue warning light for night work and emergency signaling. Ensures visibility in dark or remote environments, keeping you safe and seen.

20+ Integrated Tools for Every Challenge

8849 Tank Pad Ultra offers 20+ essential tools, including noise test, compass, flashlight, bubble level, picture hanging guide, height measure, magnifier, alarm, pedometer, plumb bob, protractor, pressure gauge, speedometer, underwater camera, camping lamp, water & dust cleaning, fan cooling, warning simulator, and super flashlight.

Built to Survive Any Environment

Unlike ordinary tablets that break or fail when exposed to water or dropped, the Tank Pad Ultra is built tough with IP68 and IP69K protection, making it shockproof, dustproof, and waterproof. Designed for harsh environments, it delivers reliable performance on construction sites, in fieldwork, outdoor adventures, and industrial settings such as oil, energy, and mining, ensuring your work continues uninterrupted no matter the conditions.
