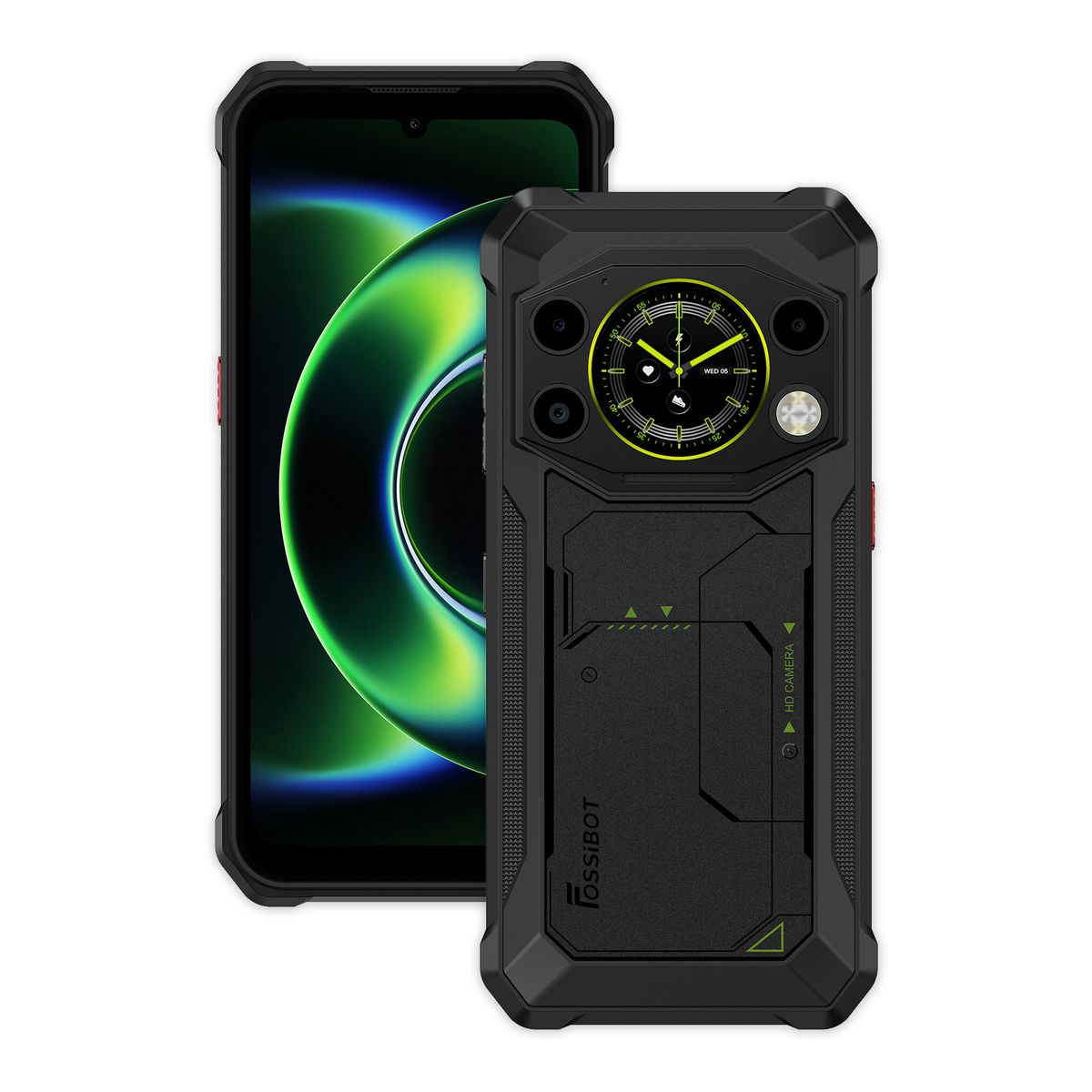

FOSSiBOT F117

Product Configuration FOSSiBOT F117 Specifications

Certification Standard
– IP68, IP69K Waterproof and Dustproof
– MIL-STD-810H Military Standard Certification

Waterproof depth Ingress Protection
– Within 1.5 meters (immersion time maximum 30 minutes)
– Depth of 1.5m underwater for up to 30 minutes.
_________________________________
Basic Information

Model
– FOSSiBOT F117

System
– Pre-installed with Android 15
– Supports OTA system upgrades (Built-in OTA Update)
– Support 48 Languages

Color
– Black & Orange
– Black & Green

Processor
– CPU: UNISOC T615 (UMS9230E)
– Frequency: 8 Cores, up to 1.8GHz
– Architecture:
– 2 x Cortex-A75, up to 1.8GHz
– 6 x Cortex-A55, up to 1.6GHz
– GPU: Arm Mali-G57 MP1, up to 850MHz
– Manufacturing Technology: 12nm

Memory + Capacity: RAM & ROM
– 8GB RAM + 256GB ROM
– Virtual RAM: Expandable up to 16GB
– Combined RAM: Up to 24GB
– Memory Card (TF Card): Supports up to 1TB Maximum

Battery and Charging
– Battery: 10000mAh
– Supports 18W Fast Charging
– Support Reverse Charging
– Reverse Charging Output: Up to 1.2A
_________________________________
Screen Display

Main Display
– Size: 6.745 inches
– Panel Type: IPS TFT In-cell
– Resolution: 720 x 1600 HD+
– Pixel Density: 260 PPI
– Aspect Ratio: 19:9
– Screen-to-Body Ratio: 73%
-Brightness: 450 nits Minimum / 480 nits Typical
Multi-Touch

Rear Smart Display
– Size: 1.32 inches
– Panel Type: TFT LCD
– Resolution: 360 x 360
– Pixel Density: 282 PPI
– Brightness: 250 nits Minimum / 300 nits Typical / 480 nits Maximum
– Supports call answering
– Supports time and battery status display
– Supports Camera Control
– Supports Music Playback Control
– Supports notifications and information push.
– Supports step counter display
– Supports Rear-Camera Selfies
_________________________________
Camera

Rear Camera
– 50MP AI Main Camera
– Sensor: HI-5021, 1/2.25″
– Aperture: ƒ/1.8
– Field of View: 79.5°
– Optical Image Stabilization (OIS)

– 5MP Macro Lens Macro Camera
– Samsung S5K4E8, 1/4″
– Aperture: ƒ/2.2
– Field of View: 75°

– LED Flash
– Video Recording: Up to 2K@30fps

Front Camera
– 8MP Selfie Camera
– HI849, 1/3.1″
– Aperture: ƒ/2.45
– Field of View: 78.1°

Built-in Underwater Photography mode
– Supports underwater photo capture
– Supports underwater video recording
_________________________________
Connectivity

– Mobile network cellular: 4G / 3G / 2G
– SIM Configuration:
– Nano SIM + Nano SIM
– Nano SIM + TF Card
– Navigation: GPS, GLONASS, Beidou, Galileo
– Wireless network WLAN: 802.11 a/b/g/n, 2.4GHz/5GHz
– Bluetooth: 5.0
– NFC: Support
– FM Radio: Support
– OTG: Support
_________________________________

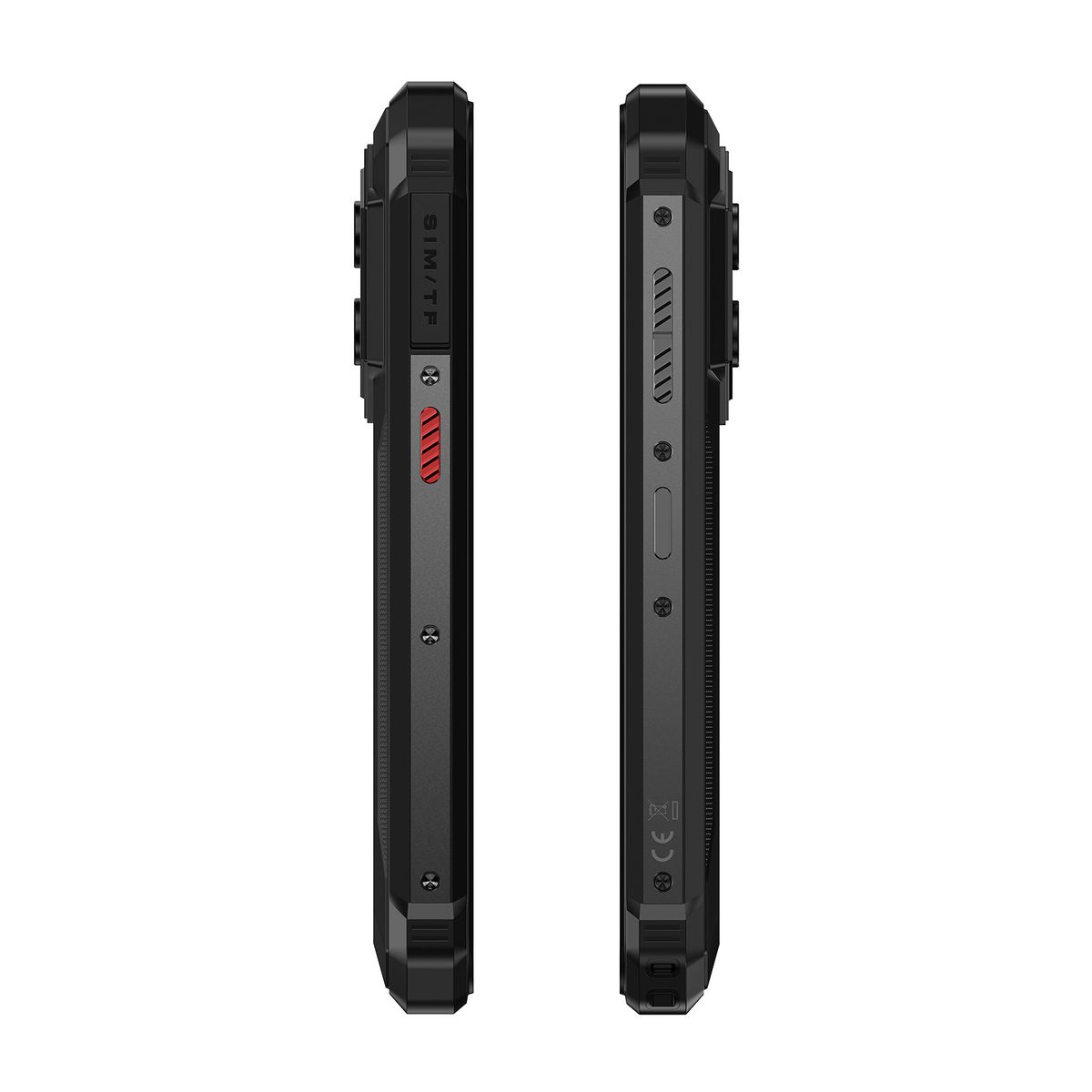

Buttons & Ports

– Card Slot: Dual Nano SIM / Nano SIM + TF Card
– Charging port: USB Type-C
– Earphone Jack: USB Type-C
– Customized Key: Support
_________________________________
Dimensions

– Size: 182.9 x 86.45 x 19.4 mm
– Weight: 430–435g
_________________________________
Speaker

– 2W Loudspeaker
– Speaker specifications: 1134 Box, 4Ω
Loudness: Up to 100dB
– Smart PA Audio Amplifier
_________________________________
Other Features

High-Brightness Light
– Support

Barometer
– Support

Glove Mode
– Support

Unlock Options
Fingerprint Unlock
Face Unlock
_________________________________
Package Contents

1 x FOSSiBOT F117 mobile phone
1 x Charger (18W)
1 x USB Type-C to Type-C data cable
1 x Screen Protector (pre-installed)
1 x SIM Tray Ejector
1 x Packing Box
1 x User Manual
1 x Warranty Card
_________________________________
Maintenance Warranty

Parallel Import Products
7-Day Guarantee
– One-Year Warranty
